HEE series 12 poles Heavy Duty Connector Insert

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HEE-012-MC/FC

Production Capacity: 50PCS a day

Delivery Date: 5 days after payment

Material of Insert: PC

Terminal type: Crimp Terminal

Voltage: 500V

Means of Transport: Ocean,Air;DHL,,TNT

Packing: standard or customer reuqir...

Brand Name: MAOJWEI

Contact: Copper with golden plated

Current: 16A

Protection degree: IP65

HEE series Heavy Duty Connector Insert
12 poles
16A/500V
Suitable hoods/housings: H6B

HEE-012-MC / FC Heavy Duty Connector Insert

1.Material & parameter

Insert: PC
Contact: copper with gold-plated

Crimp terminal
12 poles , ¢2.5mm
male insert / female insert
16A,500V

Temperature range:-40℃...+125℃
Flammability acc.to (UL94):V0

Mechanical working life(mating cycles): ≥500

2. Logo

3. Arrangements

HEE series 12 poles Heavy Duty Connector Insert

4. Picture and Part No.
HEE series 12 poles Heavy Duty Connector Insert

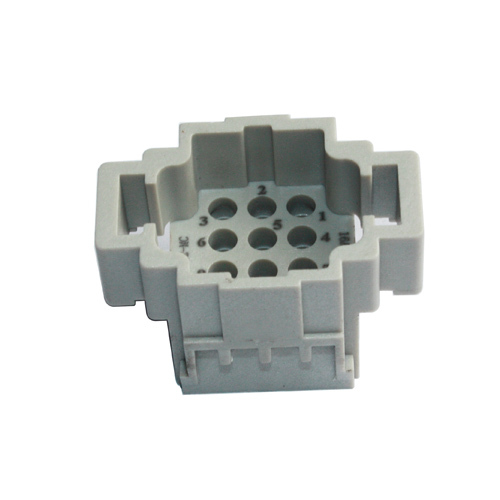

HEE-012-MC (12 poles male)

HEE series 12 poles Heavy Duty Connector Insert

            HEE-012-FC (12 poles female )

5. Suitable hoos / Housings

                        Hoods                                       Hoods                                     Housings


            H6B-TE-2B-P13.5       H6B-TE-1L-PG13.5             H6B-BK-1L
            H6B-TE-2B-PG16       H6B-TE-1L-PG16
            H6B-TE-2B-M20       H6B-TE-1L-M20


           H6B-SE-2B-PG13.5           H6B-SE-1L-PG13.5       H6B-SF-1L-PG16
           H6B-SE-2B-PG16           H6B-SE-1L-PG16      H6B-SF-1L-M25
           H6B-SE-2B-M20           H6B-SE-1L-M20


              H6B-TEH-2B-PG16          H6B-TEH-1L-PG16       H6B-BK-1L-N
              H6B-TEH-2B-PG21          H6B-TEH-1L-PG21
              H6B-TEH-2B-M25          H6B-TEH-1L-M25
              H6B-TEH-2B-M32          H6B-TEH-1L-M32


            H6B-SEH-2B-PG16           H6B-SEH-2B-PG16
            H6B-SEH-2B-PG21           H6B-SEH-2B-PG21
            H6B-SEH-2B-M25           H6B-SEH-2B-M25
            H6B-SEH-2B-M32           H6B-SEH-2B-M32

6. How to choose out hoods and housings:
    1. Choose or advise insert part No.
    2. Hoods: top entry or side entry
    3. Housing: surface mounting or bulkhead mounting

MAOJWEI Heavy Duty Connector as the same specificaton as Hrating, XIBASHI, high quality,but compective price, welcome you choose MAOJWEI Heavy Duty Connector.
